How to set up and share a dashboard from RecMan BI.

As a system administrator, you can set up one or several dashboards in RecMan BI. Whether it is a CEO who needs a full overview, a CTO who requires technical control, or a co-worker needing insights into their recruitment or staffing projects, this will be possible with RecMan dashboards. Additionally, you can display your dashboards on your office TVs for visual management.

Setting up a dashboard

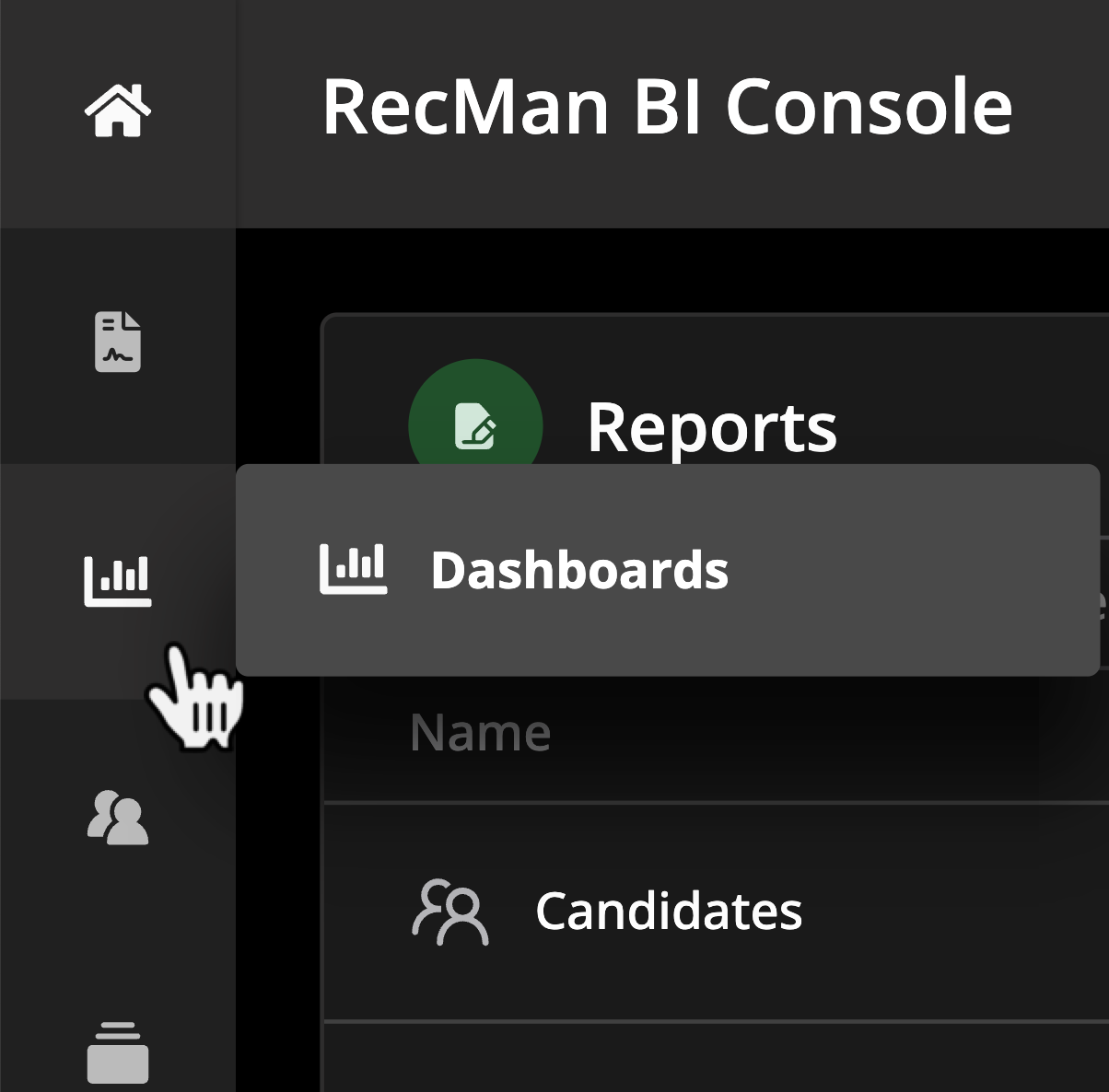

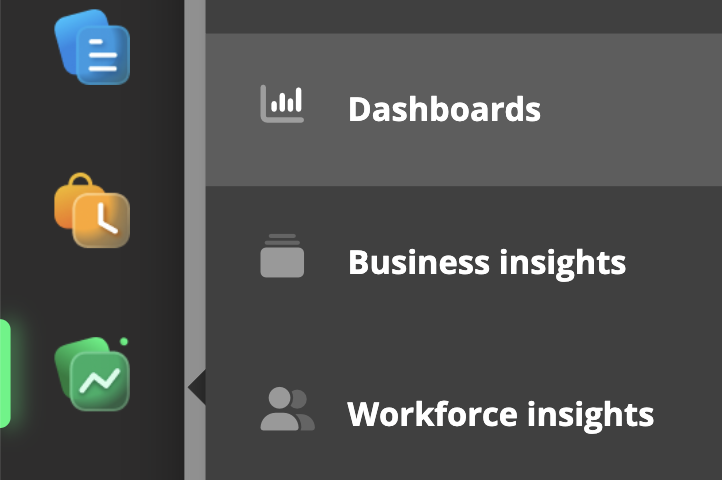

To access dashboards, go to RecMan BI, where you first get an overview of the dashboards shared with you.

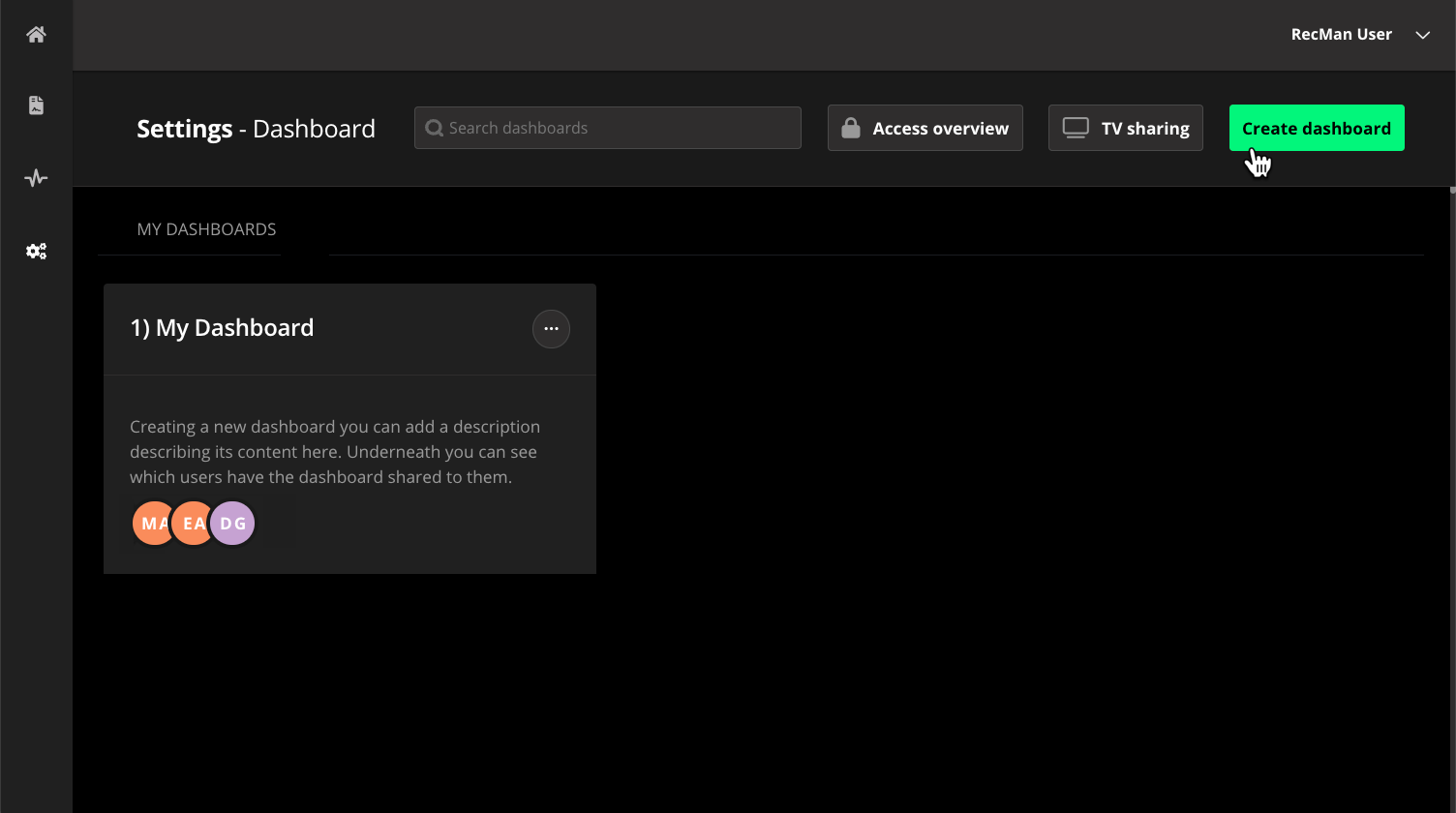

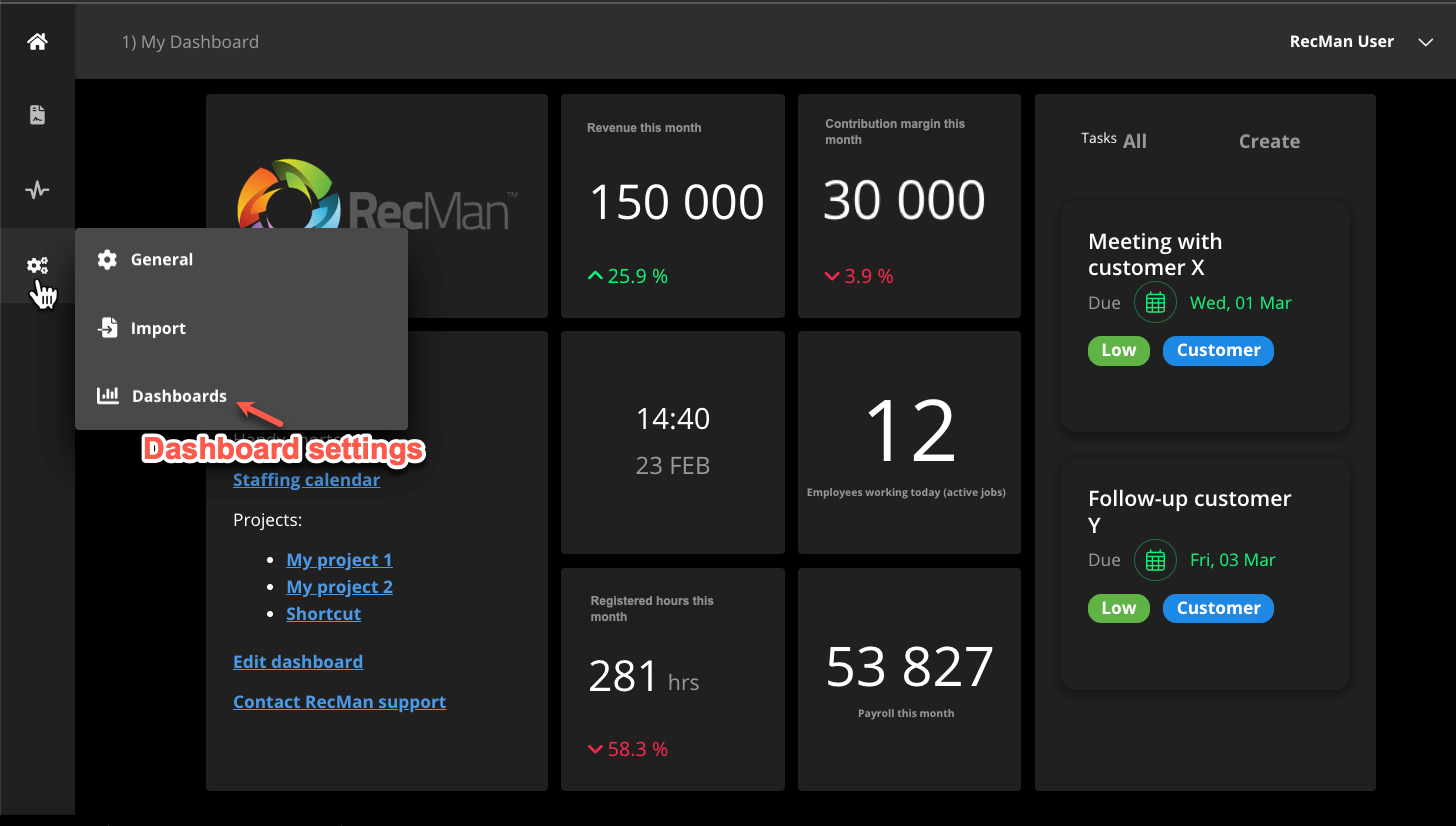

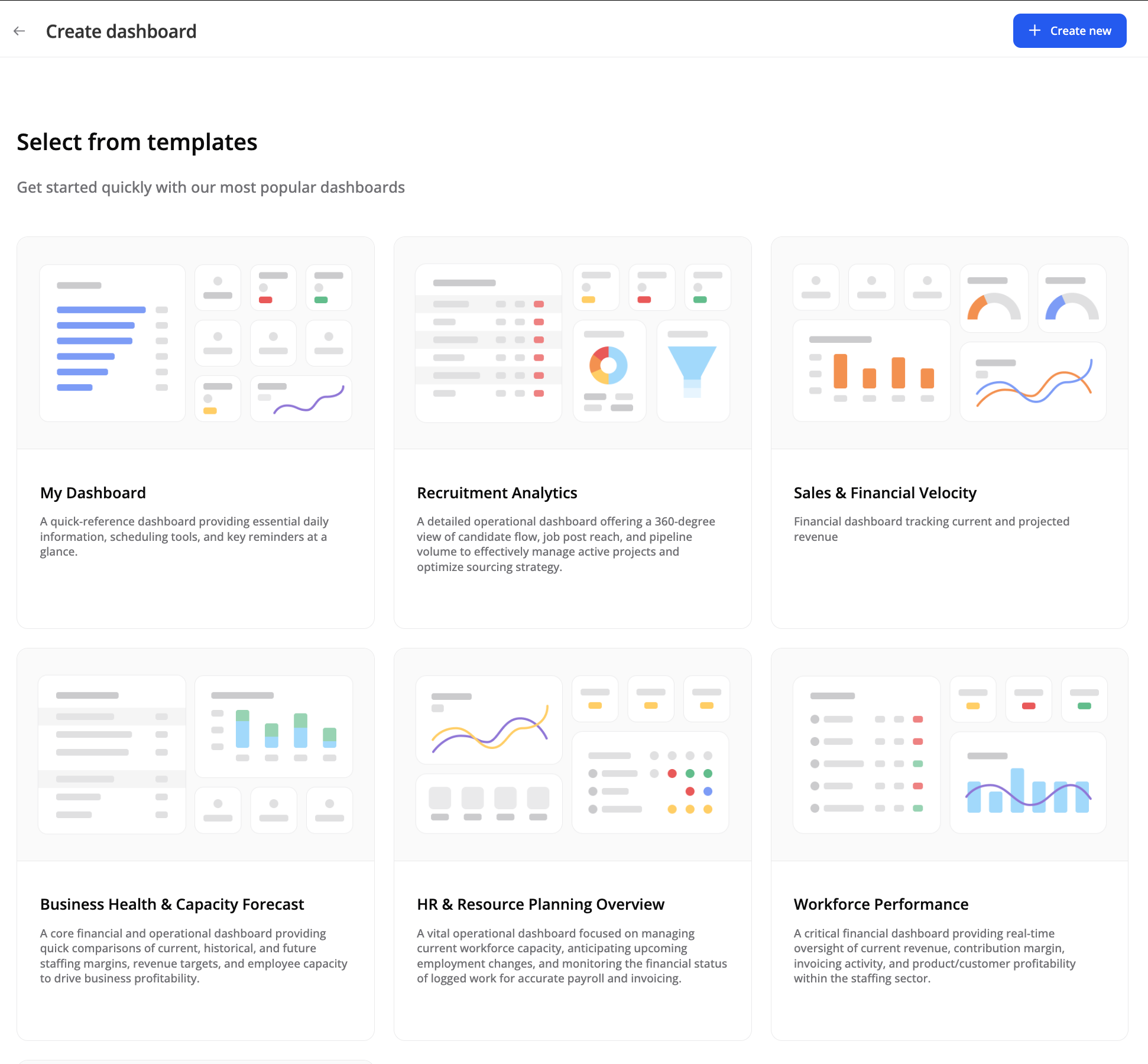

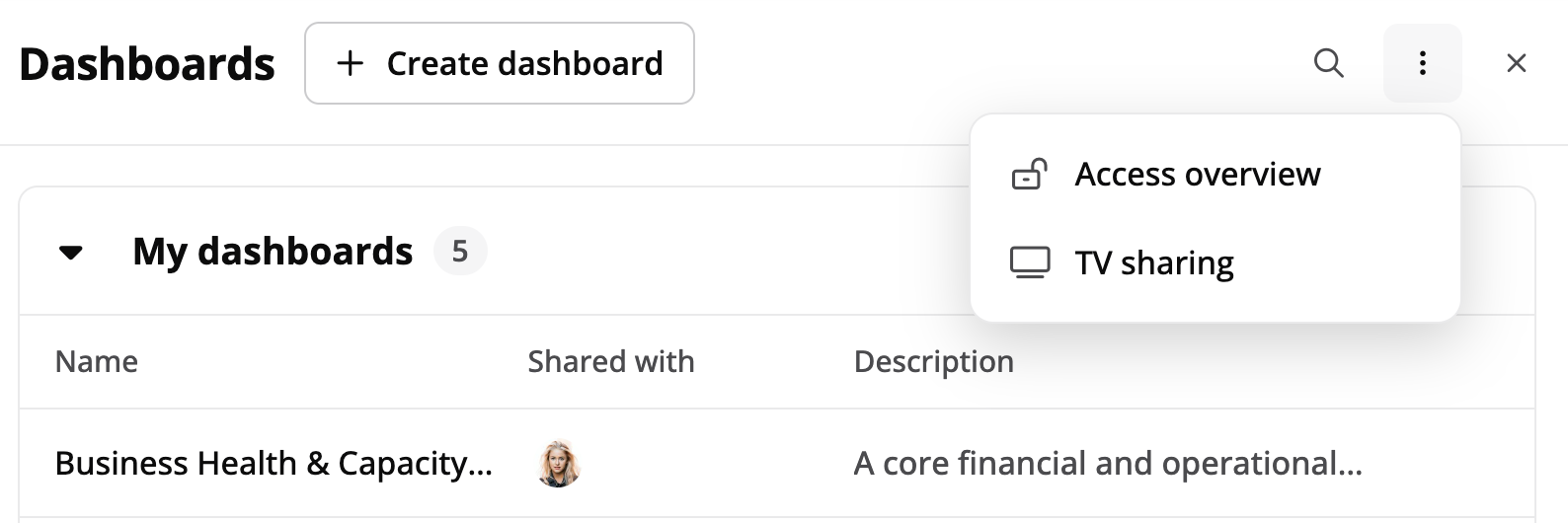

To create new dashboards, or edit existing ones, navigate to Settings -> Dashboards. Here you can click Create dashboard to set up a new one (see the image below).

Adding widgets to the dashboard

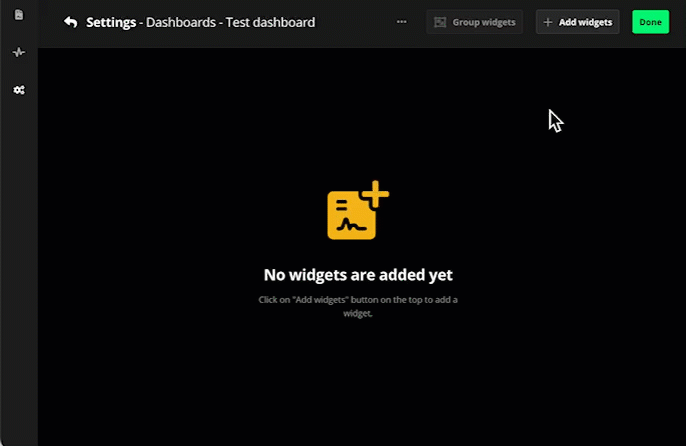

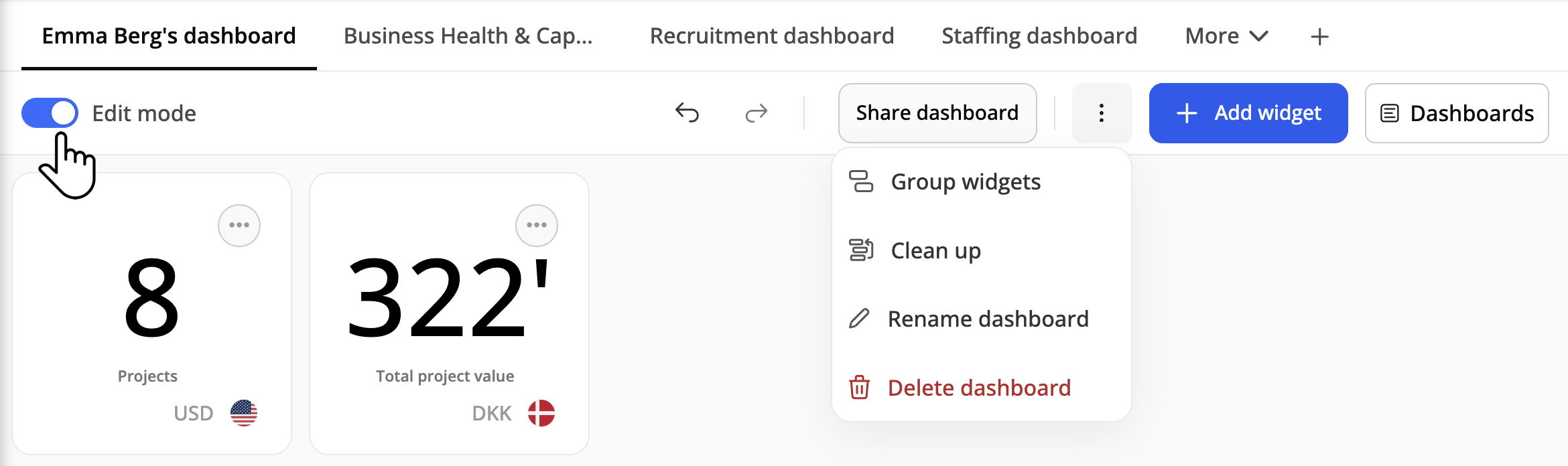

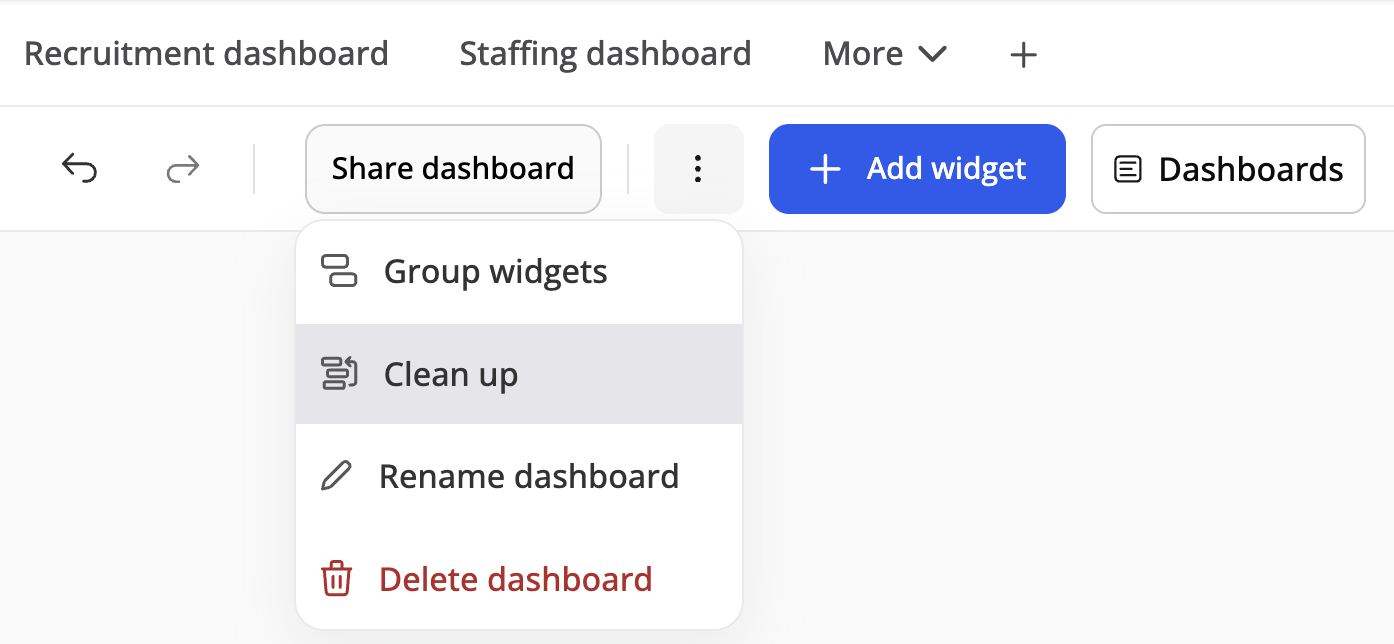

After creating a new dashboard, you will be forwarded to the "settings" view for the dashboard, where you can add widgets and customize its content. To add a new widget, click the "Add widget" button. From here, you can search and filter out the widgets you want and then click the "+" button to add it to your dashboard.

General widget settings

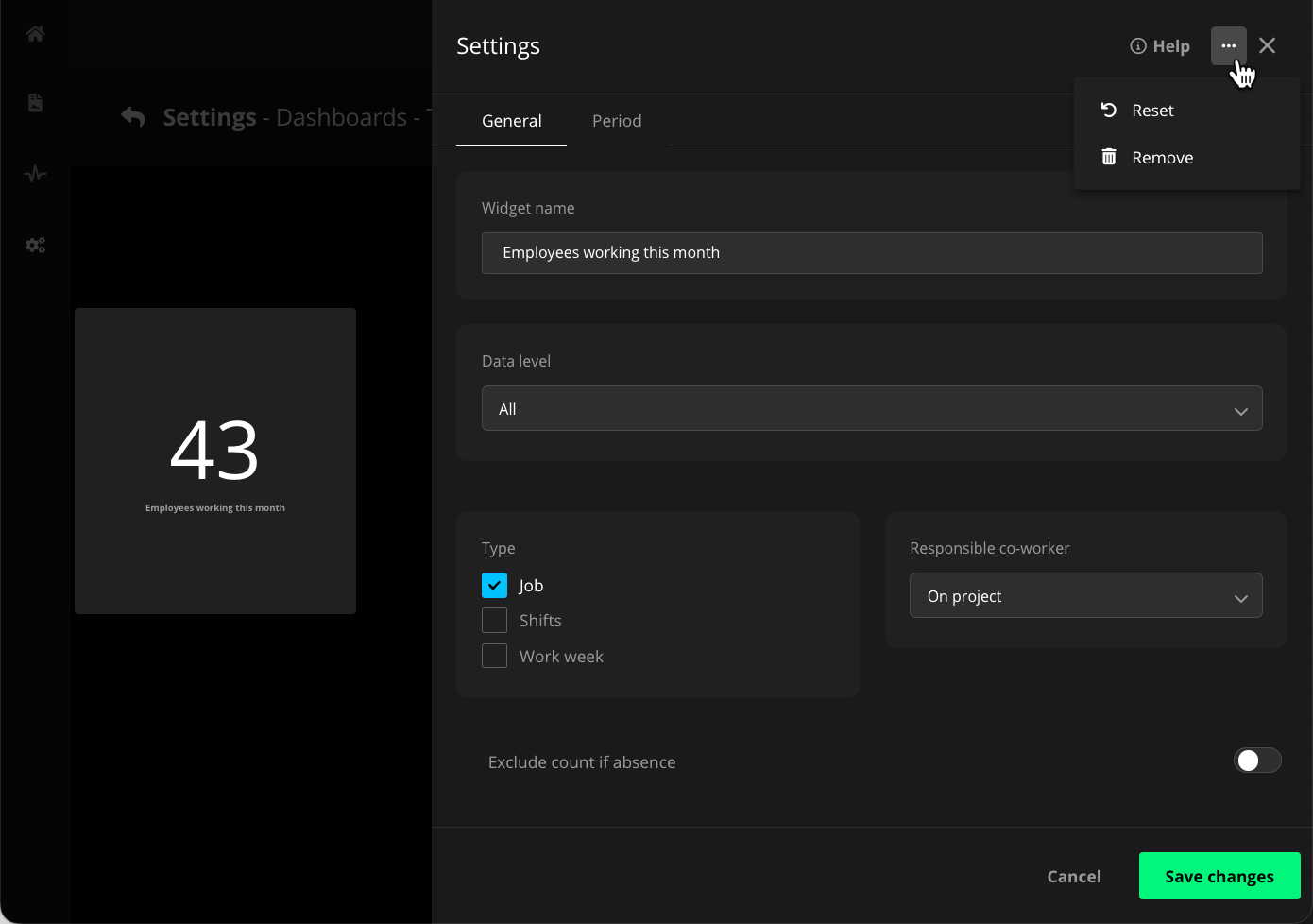

Once you add a new widget, the settings for the widget will be pre-defined. We recommend accessing these settings through the three-dot button in the top-right corner of the widget to further customize it for your specific needs. Additionally, you can adjust the size of the widget by clicking the bottom-right corner.

Within the widget settings, you can find a Help button that will redirect you to the article describing the widget, a feature to reset all criteria back to default, and a Remove button to delete the widget from your dashboard.

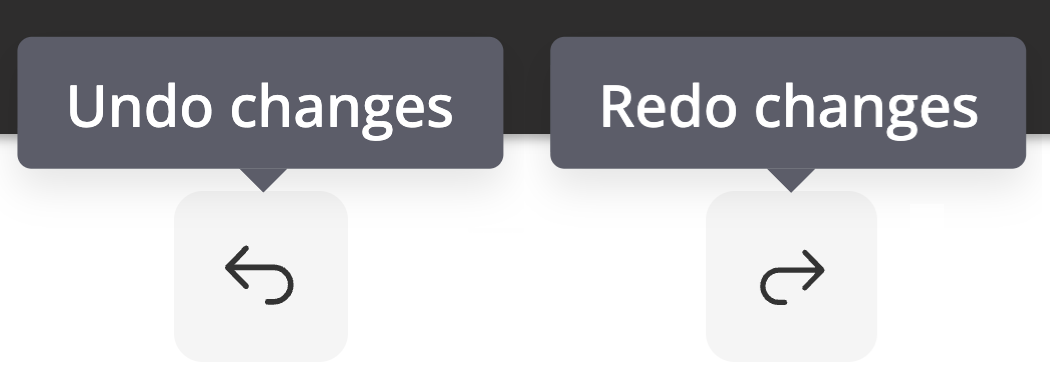

If you accidentally remove a widget, you have 12 seconds to revert the action through the Undo feature at the bottom of your screen.

Customizing a widget

Each widget comes with its own set of criteria and settings, which may vary between each widget. Below, you may get a brief overview of the possibilities.

General

The general settings are mainly to adjust the widget's name and its data level. The name is visible on the widget itself, whereas the data level will adjust the level at which the widget will include data. Data level is the most important setting for a widget to make sure it displays data in an intended manner. When selecting a data level, you should consider "who should be given access to this dashboard?". The different levels are listed below:

• All
• Corporation
• Department group
• Department
• Co-worker

If you select any other than "All," you may specify even further - choosing from one of the following:

• Dynamic
• Choose multiple
• Select one

Period

The period criteria may be specified as dynamic by choosing any of the Standard periods. If you, i.e., choose "This month," the widget will at any time display data from the current month.

If you however seek to have the widget display a specific period, apply the Custom period feature.

Some widgets even allow you to add comparison periods, where you, i.e., could apply the Standard period of "This month" compared with "This month, previous year" or "Previous month." Remember to specify your periods to gain the most value from your widgets!

Attributes

By default, a widget will not consider attributes when displaying data. These settings are a way of adding one or more attributes to have the widget filter data by the attributes you have selected.

Products and articles

By default, a widget displaying data in relation to products or articles will consider all available data. These settings may be applied to limit what products or articles the widget should fetch data from.

Types and status

These settings allow you to specify what types and statuses the widget should include or exclude.

Sharing a dashboard

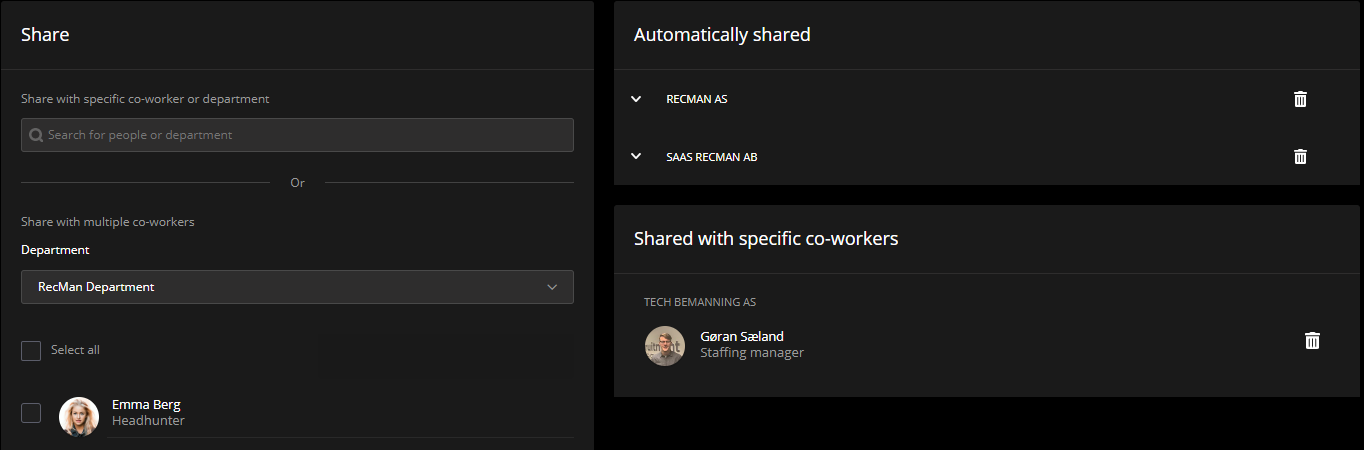

When your dashboard is ready, you may share it with whoever is to gain access to view it. As soon as you click the Done button, you will be forwarded to the sharing feature. From this view, you have two options.

From Share with a specific co-worker or department, you may search for a department in your solution and add it to the Automatically shared section. By using this feature, all existing and every new co-worker added to this department will be given access to the dashboard automatically. If you search for a co-worker, it will work similarly to as described below.

Through Share with multiple co-workers, you may select one or more specific co-workers. This method is often used when a selected few are to view the dashboard.

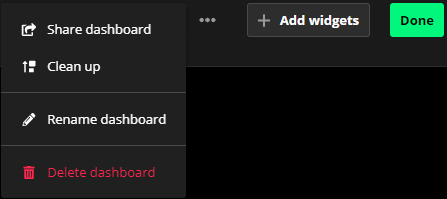

You may always access the sharing feature for a dashboard by clicking on the three-dotted menu from the dashboard overview or from within the settings for a specific dashboard.

From the dashboard overview, you can also go to the Access overview to administer access at a greater level.

Sharing dashboards with a TV web browser

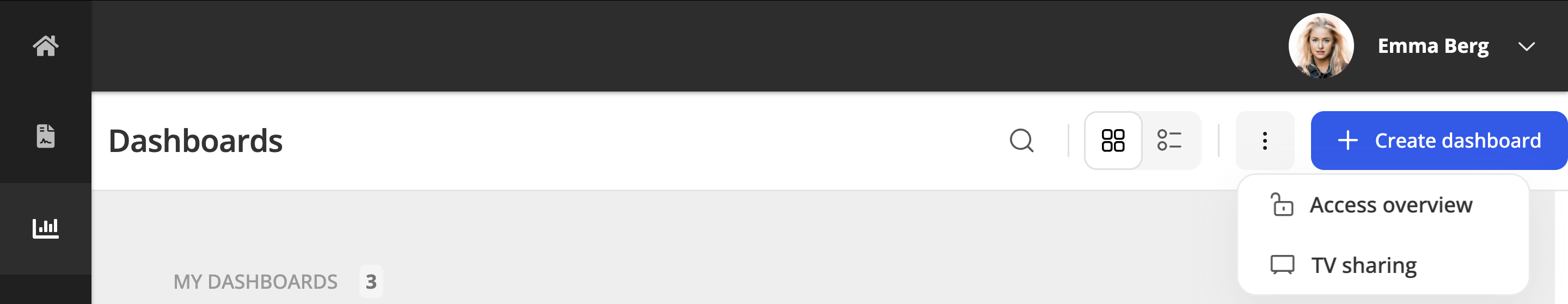

When in the dashboard overview, you may locate the TV sharing feature in the top right corner.

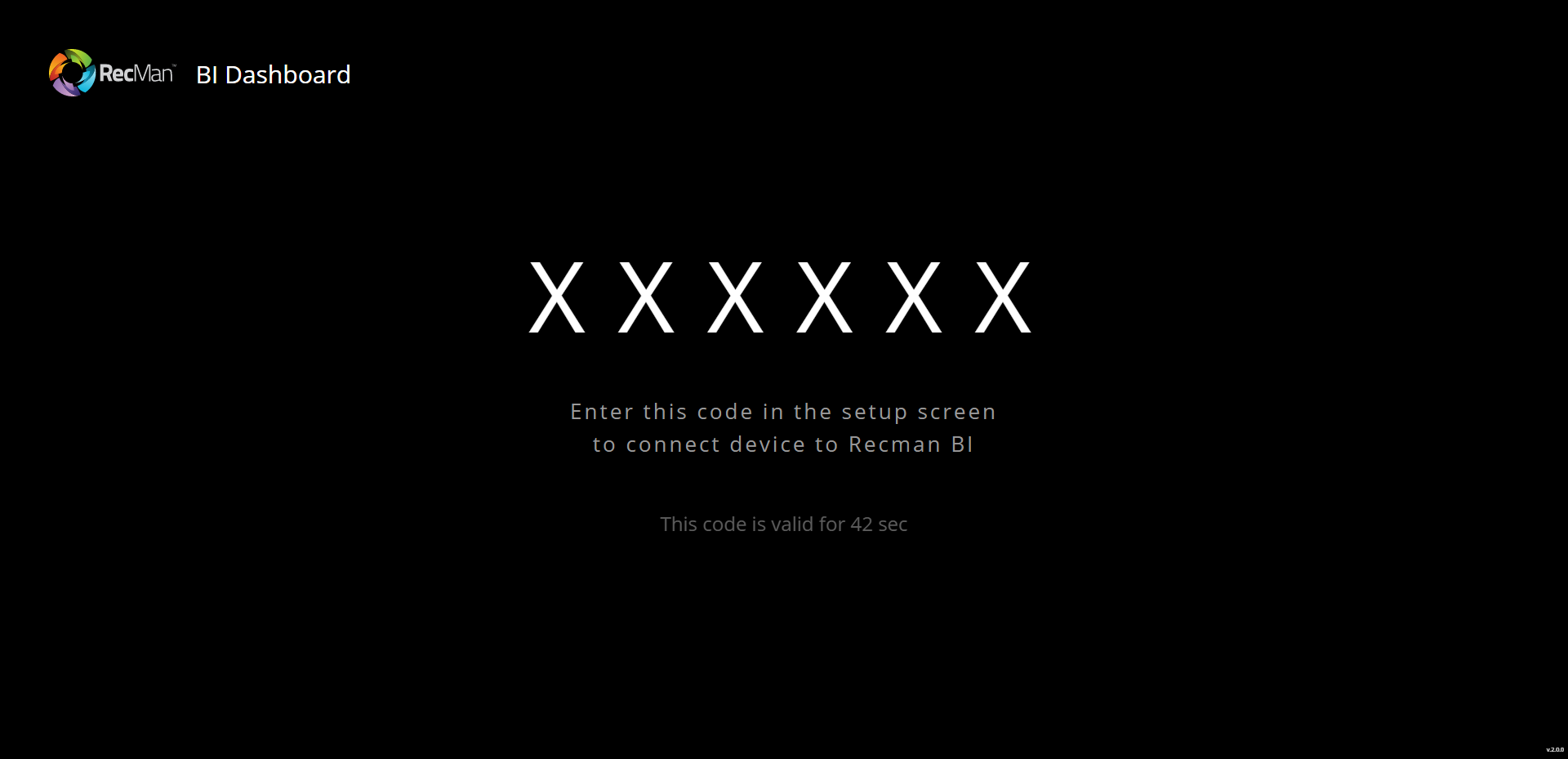

First, open a web browser on your Smart TV, computer, or any other device, and access bi.recman.no/tv. This site will display a 6-digit number, which you will require to perform the setup. Note that you have 90 seconds before the code will reset.

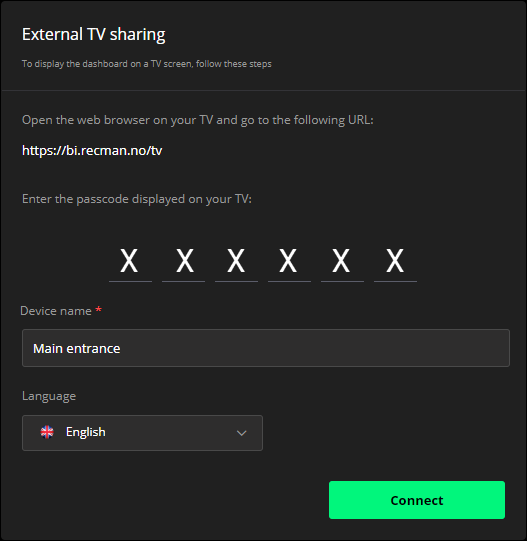

From the TV sharing feature within RecMan BI, enter the 6-digit number when connecting to your TV.

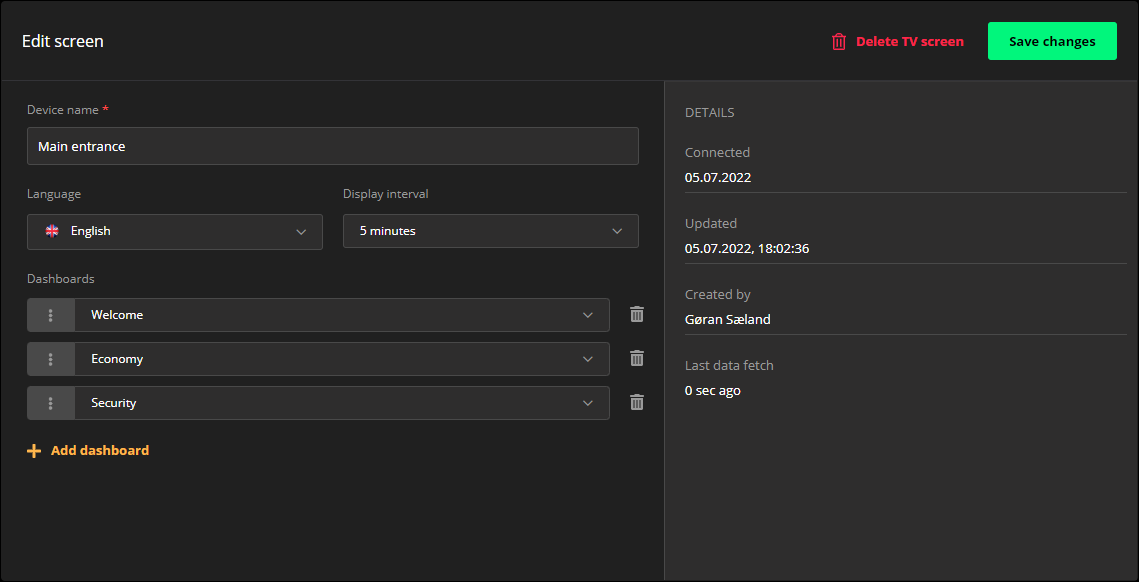

As soon as you have established a connection, you will be able to select what dashboards that are to be displayed on the TV. You may add more than one and specify the time interval for when the next dashboard will be displayed.
