This article describes Security category widgets.

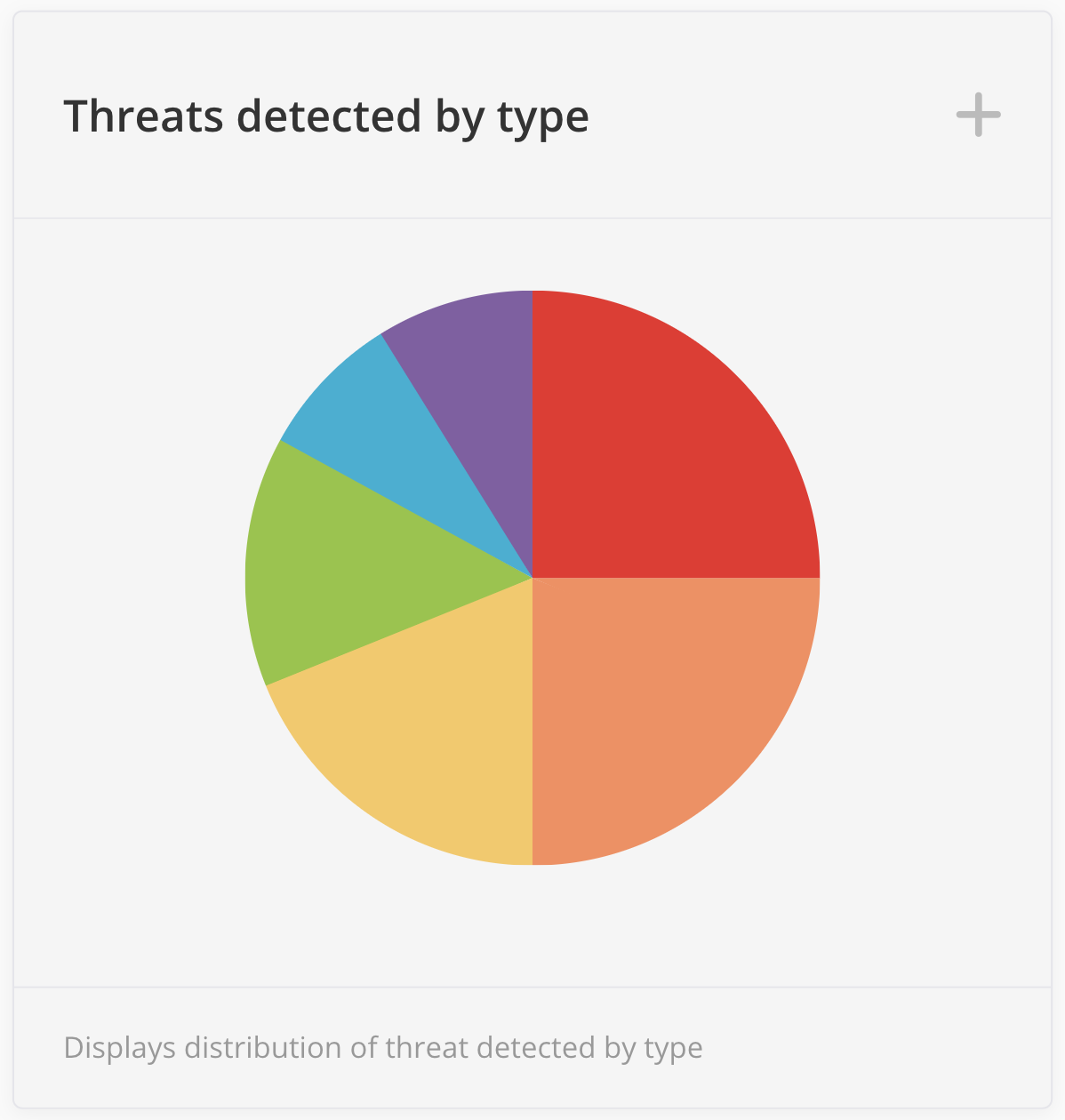

Threats detected by type widget
This widget shows all types of threats detected in RecMan.
Threats types: Infected, Suspicious, Failed, Encrypted Archive, Password Protected Document, File type Mismatch.
Widget settings:
General tab contains:
- Widget name input field
- Chart type (drop-down) - Basic pie (default value), Variable radius pie, 3D pie, 3D donut.
- Include type (checkboxes) - Infected, Suspicious, Failed, Encrypted Archive, Password Protected Document, File type Mismatch
Period tab contains:
- Standard (drop-down): Today, Yesterday, This week, Previous week, This month(default), Previous month, This quarter, Previous quarter, This year, Previous year
- Custom period (drop-down): Custom month, Custom quarter, Custom Year, Custom Period
- Checkboxes *if Custom period is selected: January, February, March, April, May, June, July, August, September, October, November, December
- Year *if Custom period is selected (drop-down): Previous year, This year, Next year, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
After adding the widget to the dashboard, the widget shows data according to the default date period - “This quarter,” and the chart type set by default is “Basic pie.”

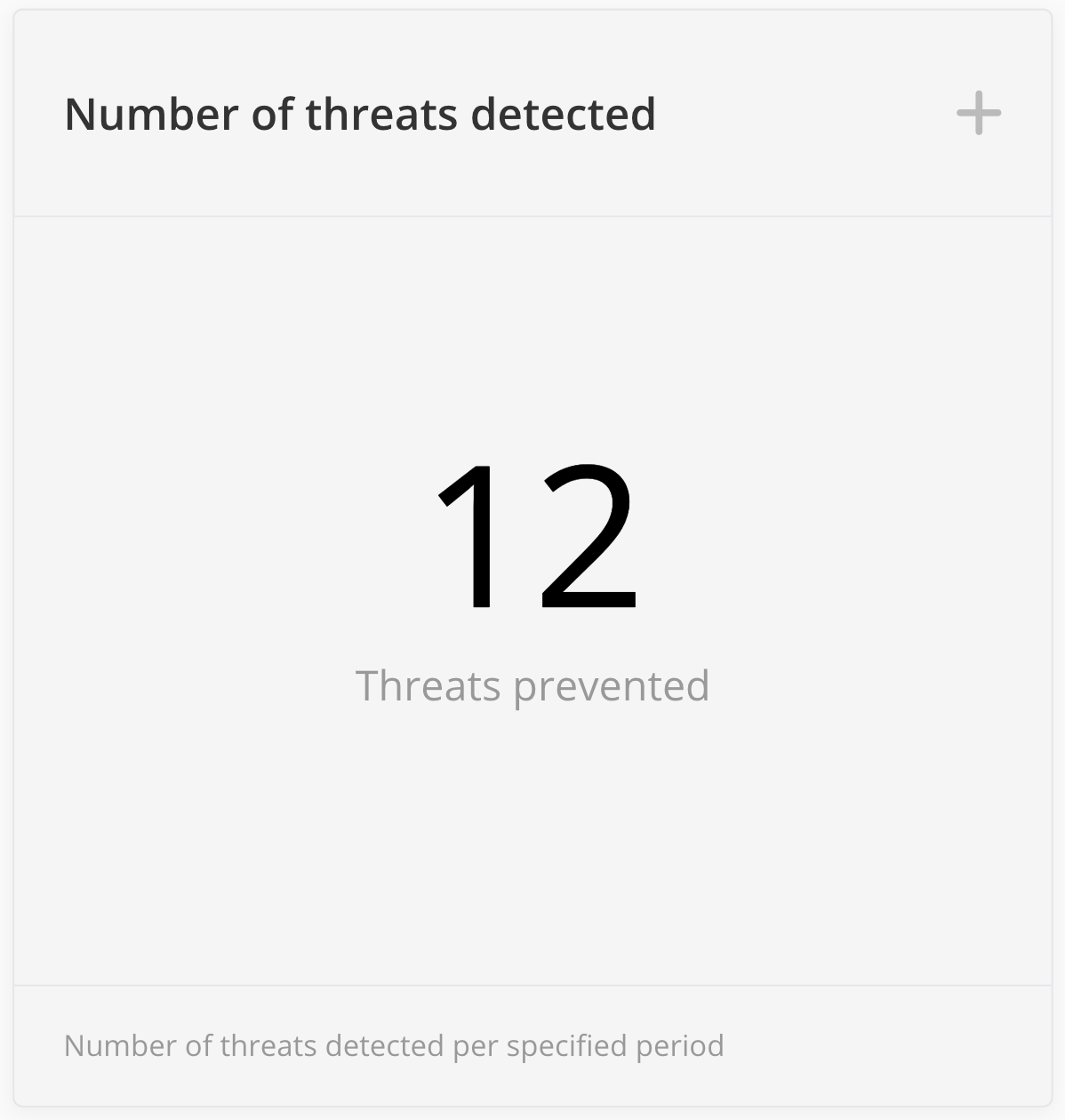

Number of threats detected widget
This widget shows the total amount of detected logged threats in RecMan. All types of threats from DataBase are shown on the widget. The same data is displayed as on the widget - “Threats detected by type.”
Widget settings:
General tab contains:
- Widget name input field
- “Include type” checkboxes with threats types: Infected, Suspicious, Failed, Encrypted Archive, Password Protected Document, File type Mismatch
Period tab contains:
- Standard (drop-down): Today, Yesterday, This week, Previous week, This month(default), Previous month, This quarter, Previous quarter, This year, Previous year
- Custom period (drop-down): Custom month, Custom quarter, Custom Year, Custom Period
- Checkboxes *if Custom period is selected: January, February, March, April, May, June, July, August, September, October, November, December
- Year *if Custom period is selected (drop-down): Previous year, This year, Next year, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
After adding the widget to the dashboard, the widget shows data according to the default date period - “This quarter” (default value).

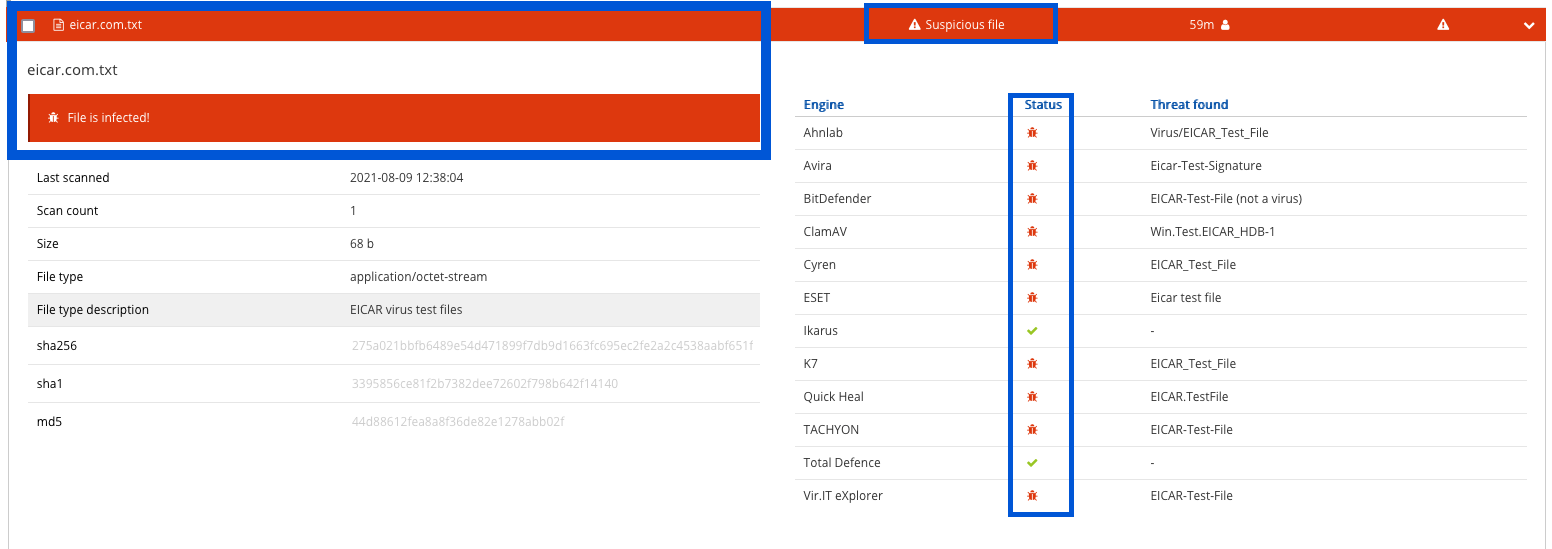

The admin can open the “detailed view” window to review information about threats: File stored, Filename, and Threat type.
